© Eugene A. Grigor'ev

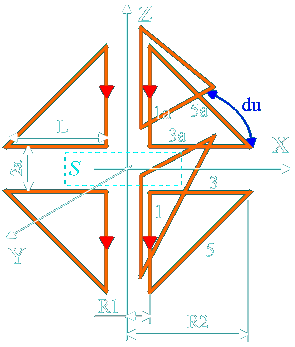

Calculations of a magnetic field
between two axial segmented toruses
of the triangular form

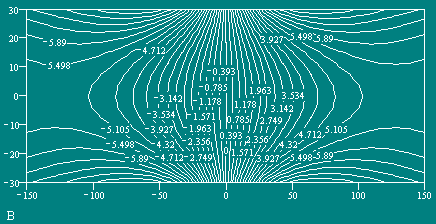

Structure of a magnetic field between two axial segmented toruses of the triangular form as a surfaces of a level of equal magnetic intensity is shown.
Direction of a vector of a magnetic intensity - perpendicularly to a plane of the t.
The calculations are executed by means Mathcad 7.



[ Tesla ]

                   Download Mathcad in Zip: trio.zip
